What is Chemical Reactor?
A chemical reactor or reaction vessel are vessels design to facilitate chemical reaction among various raw chemicals, known as reactants. Reaction Vessels are also used for other processes such as solids dissolution, product mixing, distillation, crystallization, liquid/liquid extraction and polymerization. Reactors are also identified based on process for which it will be used. (such as blender or crystallizer).
We are a chemical reactor manufacturer for Chemical, Pharm and other industries.
Specifications
- Complete range of chemical reactors as per your specifications
- Proven quality. 700+ reactor vessels working successfully
- Adheres to ASME and other standards with special attention to Argon and Arc welding procedures
- Offered in Stainless Steel ( SS-316, SS-304) as well as Carbon Steel material
- Raw material sourced from Tata, Jindal, Essar, Thyseen-Krupp, Arcelor- Mittal
- Man, Machine and System Infrastructure to execute big projects
- Strident internal quality assurance system. We are an ISO 9001:2008 certified company
- Value added service offered separately for valves, fittings, pipe and automation
- All reaction vessels can be fabricated as per GMP guide line
- Different types of agitator design
- Registered with leading consultants and third party inspection agency.
- Reliable After sales support
- On time deliverye

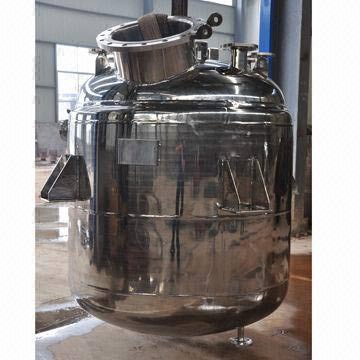

Jacketed Vessel Manufacturer
During Exothermic reaction heat will be released by reactants and during Endothermic reaction heat will be absorbed. In both the processes temperature should be controlled as per process requirements for the perfect result. A jacketed vessel will facilitate the above.
Jacketed reactor has a jacket surrounding the main vessel. During reaction, temperature of reactants is controlled by circulating heating or cooling media through the jacket. Ideally suitable for the heating below 150 Centigrade (302 Fahrenheit). Commonly used heat transfer media include water, steam, hot oil such as TherminolT, and Dowtherm A.
Bharat Heavy Machine is a proven jacketed vessel manufacturer. Jacketed vessel can also be offered in Dimple design.
Benefits of Bharat Heavy Machine Jacketed Vessel
- Available in the range of 500 Liters to 60,000 Liters
- Offered in Stainless Steel 316, 304 or Carbon Steel material
- Spirals welded on outer surface of the main vessel for uniform circulation of heating or cooling media like steam, oil, water etc. And also provides extra strength to the main vessel
- Adheres to ASME and other standards with special attention to Argon and Arc welding procedures
- Save Energy using two part Jacket design for smaller batch
- GMP range of equipments available for Pharmaceutical industry. With mirror finish from 220 grit to 440 grit, smooth welding, flush grinding and Insulation with mirror finished S.S cladding
- Energy efficient direct drive design for the agitator , with VFD option to vary the RPM of the drive
- Agitator design to suit the reactants viscosity and density
- Vessel design with form cutter for the process which generates forms
- Save time and money with our Value added products and services like Process Automation, valves and fittings
- Manufactured as per your specifications
- Manufacturing facilities approved by the renowned consultants and Third party inspection agencies
|
|
